The automatic transmission is a complex system that relies on hydraulic circuits and electronic solenoids to shift gears smoothly and efficiently. Malfunctions in solenoids or hydraulic pressure can lead to harsh shifting, slipping, delayed engagement, or transmission warning lights.
With HaynesPro, technicians gain access to manufacturer wiring diagrams, OEM pressure values, guided test procedures, and exact component locations, enabling fast and accurate diagnosis of transmission issues.
Symptoms of Faulty Transmission Solenoids or Hydraulic Pressure
Common symptoms observed in the workshop include:
- Harsh, delayed, or slipping gear changes : Incorrect hydraulic pressure or solenoid malfunction
- Transmission warning light on (MIL / Check Engine): Common fault codes: P0740, P0750, P0868, P0715
- No engagement or delayed drive/reverse: Pressure insufficient to engage clutches or bands
- Unusual noises during shifting : Hydraulic or mechanical issues
- Excessive fuel consumption or erratic engine behavior : Transmission slipping affects engine load and efficiency
💡 Note: Early diagnosis prevents expensive damage to clutch packs, valve bodies, and the torque converter.
Step 1: Data Collection with HaynesPro
HaynesPro provides quick access to:
- Transmission system diagrams: valve body, solenoids, hydraulic circuits, torque converter
- Manufacturer hydraulic pressure specifications: line pressure at idle, shift, full load
- Guided diagnostic procedures: electrical, mechanical, and functional tests
- Exact solenoid and connector locations
- OEM voltage, resistance, and current ranges for multimeter or scan tool testing
This information helps technicians determine whether the fault originates from the solenoids, wiring harness, valve body, or hydraulic system.
Step 2: Expert Diagnosis of Solenoids and Hydraulic Pressure
1. Electrical Solenoid Check
- Verify power supply and ground to solenoids
- Measure solenoid resistance and activation current
- Check signal output to transmission control module (TCM)
2. Hydraulic Pressure Measurement
- Read line and shift pressures via diagnostic tool or test port
- Compare measured pressures to HaynesPro manufacturer specifications
- Identify blocked circuits, leaking valves, or weak pump output
3. Wiring Harness and Connector Inspection
- Look for oxidation, broken wires, damaged insulation
- Verify connector pins and secure connections
4. Valve Body and Mechanical Inspection
- Check for stuck or leaking solenoids
- Inspect pressure regulators and accumulators
- Confirm torque converter operation
➡ Also read our article: How to Diagnose a Torque Converter with HaynesPro
HaynesPro Case Study: Toyota Camry 2.5L Automatic
Symptoms
- Delayed engagement from Park to Drive
- Harsh 1-2 gear shift
- Transmission warning light on
- Fault code P0750 – Shift Solenoid A Malfunction
Diagnosis using HaynesPro

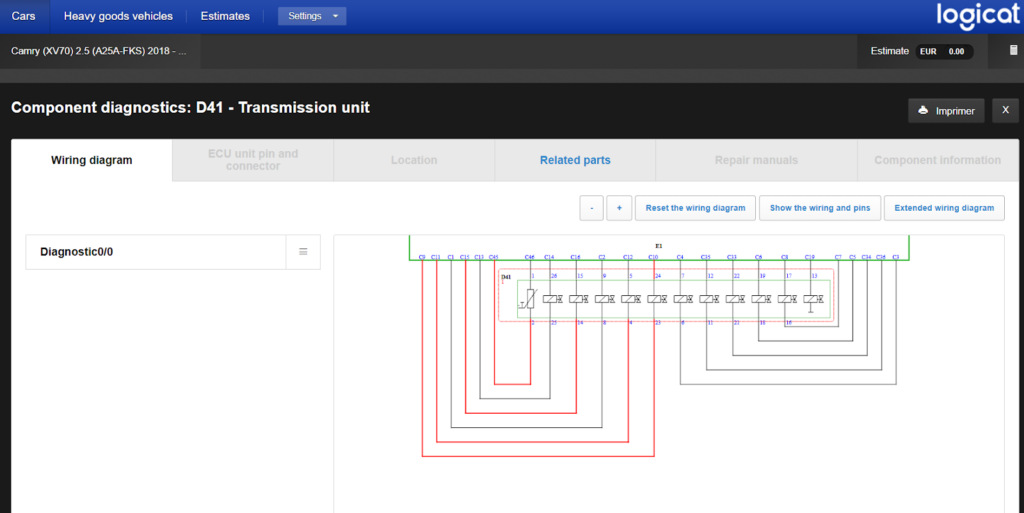

✔ Access to Toyota 2AR-FE transmission valve body diagram
✔ Guided test procedure for shift solenoids and line pressure
✔ Manufacturer specifications:
- Line pressure at idle: 40–45 psi
- Shift pressure (1-2): 60–70 psi
- Solenoid resistance: 12–14 Ω
Results
- Solenoid resistance slightly above range
- Hydraulic pressure low during 1-2 shift
- Wiring harness intact
Diagnostic Conclusion
- Faulty shift solenoid (internal coil degradation)
Solution
- Replace shift solenoid
- Clear fault codes
- Validate operation with road test
- Normal engagement and smooth shifts restored
⏱ Time saved thanks to HaynesPro: ~50 minutes (avoiding unnecessary valve body replacement)
Modern automatic transmission solenoids and hydraulic circuits are critical for reliable shifting and transmission longevity. With HaynesPro, technicians gain access to accurate OEM data, step-by-step procedures, and detailed diagrams, allowing fast, cost-effective, and precise diagnostics.
➡ Result: fewer errors, less wasted time, higher customer satisfaction
