Troubleshooting U‑Codes: How to Use HaynesPro’s Multiplexed Diagrams to Locate Communication Failures

U‑codes (e.g., U0001 to U007F) indicate faults on modern vehicle multiplexed networks such as CAN, LIN, and FlexRay. These issues can affect engine performance, ABS, or power steering—often with no obvious symptoms.
With HaynesPro, technicians can cross‑reference U‑codes with interactive multiplexed diagrams to quickly pinpoint the source of communication failures.

Table of Contents

Understanding U‑Codes

U‑codes indicate communication errors between electronic control units (ECUs):

  • U0001 – High-speed CAN bus fault
  • U0100 – Loss of communication with the engine ECU
  • U0073 – FlexRay bus error
U codes

These codes are difficult to diagnose without clear multiplexed network diagrams.

Why Use HaynesPro?

HaynesPro offers:

  • Interactive multiplexed diagrams (CAN, LIN, FlexRay)
  • SmartCASE guided diagnostic tests
  • A reliable OEM technical database

These tools help technicians to:
✔ Identify the faulty module or connector
✔ Visualize the signal path
✔ Test communication lines methodically

Case Study: U007F – FlexRay Fault on a Renault

Context:
A garage receives a Renault Espace V with a generic alert. The OBD scanner shows:
U007F – “Control Module Communication Bus Off.”

Step 1 – Selection in HaynesPro

  • Make: Renault
  • Model: Espace V
  • Year: 2018
  • System: FlexRay – Multiplexed Diagram

Step 2 – Locating on the Diagram

The technician identifies components on the FlexRay 1B bus: engine ECU, ABS unit, and power steering module.

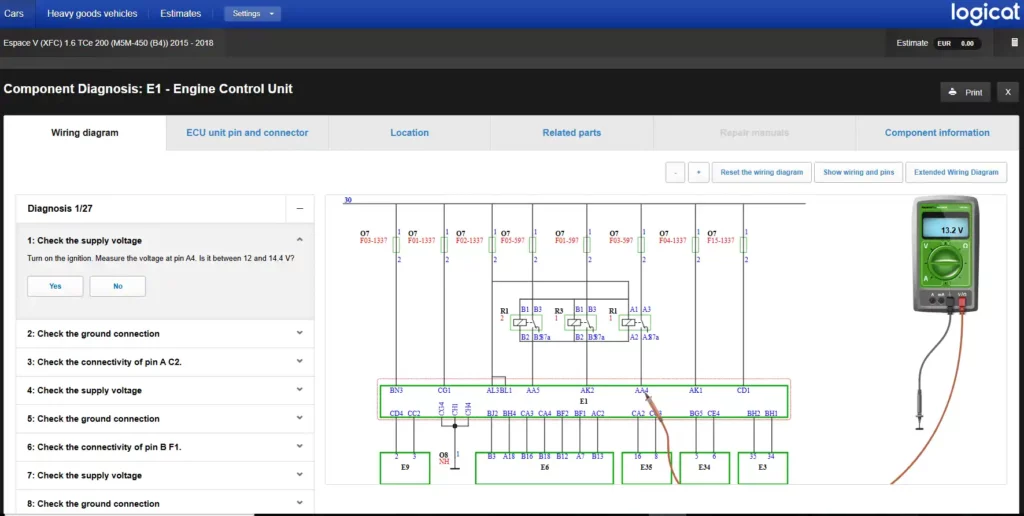

Wiring diagramms haynespro

Step 3 – Verification

A continuity test reveals a break between the engine ECU and the ABS unit. Inspection confirms:

  • A broken wire in the engine harness caused by mechanical wear.

Result:
Repair (wire segment replaced), rebuild the network = fault code cleared, vehicle repaired without unnecessary part replacements.

🎯 Bonus: Try HaynesPro for Free

Try all features before you commit:
👉 Request your 7‑day free trial of HaynesPro – no obligation, full access.

Benefits for Your Workshop

✅ Precise fault location on communication buses
✅ Reduced diagnostic and repair time
✅ Fewer parts replaced needlessly
✅ Documented diagnosis to reassure customers

Ready to upgrade?

Explore our plans for independent shops, multi-brand garages, and tech centers:
👉See HaynesPro subscription options

Conclusion

U‑codes can be cryptic without proper tools. HaynesPro offers a structured, reliable path to diagnosis via interactive multiplexed diagrams. With Logicat, you have the right tool to diagnose, repair, and reassure clients efficiently.
